EMC E-Field Probes

RadiSense®: Robust - Reliable - Small - Without Battery

DARE!! Instruments invented the LASER powered E-field probe, called the RadiSense, back in 1999. This caused a major change in measuring accurate fieldstrengths during radiated susceptibility testing. The fact that the E-field probe is undependent of an internal battery, because the field probe electronics is powered by LASER, had another advantage; that the size of the field probe could be much smaller. A smaller field probe volume automatically means that it measures more accurately.

The family of RadiSense E-field probes cover a frequency of 10 kHz up to 18 GHz, using three different models: The RadiSense 4GHz measures from 10 kHz up to 4GHz and is extremely sensitive enabling measurement of field levels of 0,25 V/m. The RadiSense 6GHz measures from 10MHz up to 6 GHz which is adopted to the IEC 61000-4-3 standard (European CE marking). The RadiSense 18 GHz covers a frequency from 30 MHz up to 18 GHz and is tailored for Military EMC susceptibility testing (MilStd 461/462)

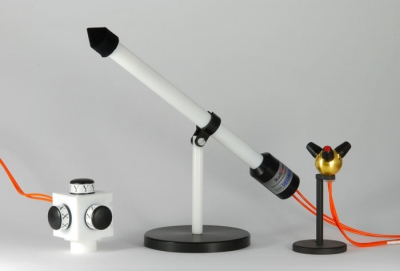

RadiSense family of LASER powered field probes

For pricing information on our RadiSense® LASER powered E-field probes please visit our webshop!!

More technical information can be found on: http://www.dare.eu/instruments/emc-probes
